RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh

  • RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh
  • RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh
उत्पत्ति के प्लेस हेंगशुई, चीन
न्यूनतम आदेश मात्रा 10 रोल
मूल्य 600-1000 us dollar per ton
प्रसव के समय हमारे पास स्टॉक में, 5 कार्य दिवस, कस्टम की मात्रा पर निर्भर करता है
आपूर्ति की क्षमता प्रति सप्ताह 500 रोल

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
सामग्री स्टेनलेस स्टील तार प्रकार बुना हुआ वायर मेष
आवेदन फिल्टर बुनाई शैली क्रॉचट बुनाई
सतह का आकार फ्लैट प्रकार और नालीदार प्रकार वायर व्यास 0.08मिमी-0.55मिमी
प्रमुखता देना

RFI shielding stainless steel mesh

,

stainless steel demister wire mesh

,

knitted filtering screen mesh
एक संदेश छोड़ें
उत्पाद विवरण

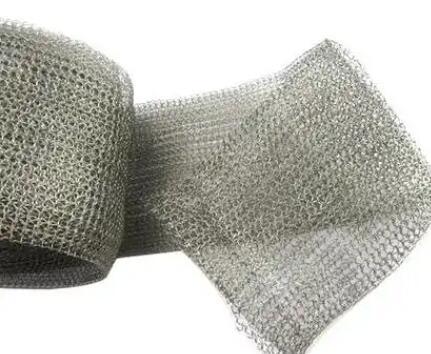

RFI Shielding Knitted Filtering Screen Mesh, Demister Stainless Steel Wire Mesh
Product Attributes
Attribute Value
Material Stainless Steel Wire
Type Knitted Wire Mesh
Application Filters
Weave Style Crochet Weaving
Surface Shape Flat type and Corrugated type
Wire diameter 0.08mm-0.55mm
Product Description

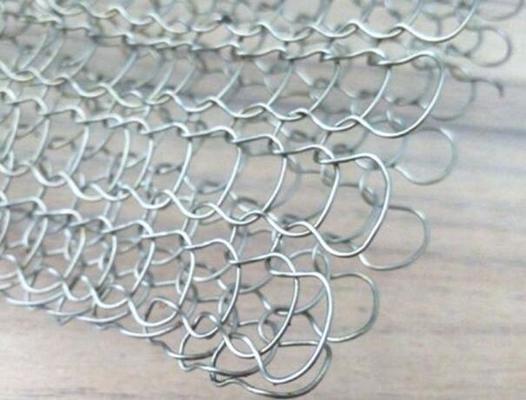

RFI Shielding Knitted Wire Mesh, knitted filtering screen mesh demister stainless steel wire mesh.

Gas-liquid net, broken foam mesh, filters, knitting nets, it is actually based on traditional ways to improve sweater knitting wire mesh. Knitting yarn is generally φ0.08 ~ φ0.50mm of round wire or pressed into a flat, wire diameter ≤φ0.30mm knotted strands can form multi-strand braided wire, but also with the filaments plied knitting.

Features
  • Highly efficient
  • Long service life
  • Heat resistance
  • Corrosion resistance
  • Abrasion resistance
General Properties
Origin Shaanxi
Materials Stainless steel wire, galvanized wire, brass wire, copper wire, etc
Aperture size 2mmx3mm (4mmx5mm) to 12mmx6mm
Width 40,100,150,300,600mm, etc
Mesh size 2mesh-635mesh
Weave Single strand wire, Double strand wire, multi strands wire
Wire diameter 0.10mm-0.55mm
Knitted Wire Mesh Types
Standard Knitted Wire Mesh
Typical wire diameter (mm) Range of natural width (mm)
0.2-0.35 30-100
Typical number of stitches per cm on length Typical number of stitches per cm cross lay flat
0.6 1.9
High Efficient Knitted Wire Mesh
Typical wire diameter (mm) Range of natural width (mm)
0.2-0.35 30-550
Typical number of stitches per cm on length Typical number of stitches per cm cross lay flat
1.6 0.74
High Penetrated Knitted Wire Mesh
Typical wire diameter (mm) Range of natural width (mm)
0.2-0.35 30-550
Typical number of stitches per cm on length Typical number of stitches per cm cross lay flat
0.5 0.5
Product Details
Standard Knitted Wire Mesh
Hole (number - width) Wire size (mm)
40-100 0.23 0.25 0.27 0.28
60-180 0.23 0.25 0.27 0.28
140-400 0.1-0.4
High Efficient Knitted Wire Mesh
Hole (number - width) Wire size (mm)
70-100 0.23 0.25 0.28
80-100 0.1-0.3
90-100 0.1-0.3
High Penetrated Knitted Wire Mesh
Hole (number - width) Wire size (mm)
20-160 0.15 0.23 0.28
20-150 0.15 0.23 0.28
70-400 0.15 0.23 0.28
RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh 0 RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh 1

Anping Qianpu Wire Mesh Products Co., Ltd. is a manufacturer and exporter of stainless steel wire mesh products. We are located in the wire mesh industrial base Anping city, Hebei province in China.

Our Product Range
  • Stainless steel woven wire mesh
  • Welded wire mesh
  • Crimped wire mesh
  • Hexagonal wire mesh
  • Knitted wire mesh
  • Wire mesh filter
  • Window screen

We have been manufacturing and exporting wire mesh products for 15 years. Our professional, responsible attitude and strictly managed techniques ensure we maintain a leading position in the wire mesh industry. We welcome your enquiry.

RFI Shielding Knitted Filtering Screen Mesh , Demister Stainless Steel Wire Mesh 2
For Quotation Requests

To make an offer, please provide us with the following wire mesh specification information:

  • Material
  • Wire diameter
  • Mesh size
  • Wire mesh length
  • Wire mesh width

If possible, please also provide us with the weight per roll that you require.
