Stainless Steel Woven Wire Mesh with 11Mesh

  • Stainless Steel Woven Wire Mesh with 11Mesh
उत्पत्ति के प्लेस चीन
न्यूनतम आदेश मात्रा 1 रोल
मूल्य Based on quantity
पैकेजिंग विवरण अंदर एक पेपर ट्यूब के साथ, बाहर प्लास्टिक की फिल्म या वाटरप्रूफ पेपर के साथ, फिर लकड़ी के केस या पैल
प्रसव के समय एक सप्ताह
भुगतान शर्तें टी/टी
उत्पाद विवरण
सामग्री स्टेनलेस स्टील आकार 1mx30m
जाल संख्या 11मेश
एक संदेश छोड़ें
उत्पाद विवरण

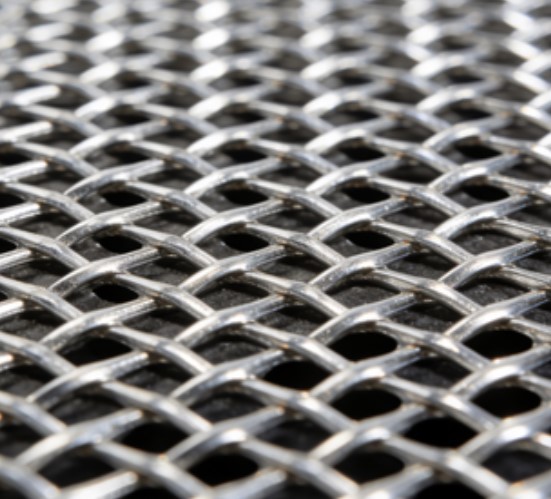

Stainless Steel Woven Wire Mesh with 11Mesh
Ultra-Fine Screening & High-Flow Filtration Solution

11 mesh stainless steel woven wire mesh is a high-precision industrial product engineered for fine particle separation and high-efficiency liquid filtration scenarios where both accuracy and throughput matter. Crafted from high-purity 304, 316, or duplex stainless steel, this mesh features a tightly controlled weaving process with zero wire displacement, ensuring consistent aperture size even under heavy load or pressure changes. The surface is treated with passivation to enhance corrosion resistance and prevent rusting in humid or mildly corrosive environments.

Key Specifications
Mesh Count 11 openings per linear inch
Aperture Size 1.8mm ± 0.02mm (industry-leading tight tolerance)
Wire Diameter Range 0.25mm-0.7mm (thinner wires for higher flow rate; thicker wires for structural strength)
Material Performance
  • 304 Grade: Food-contact compliant, ideal for dry/wet processing in food, beverage, and pharmaceutical sectors
  • 316 Grade: Superior chloride resistance, suitable for coastal, marine, and chemical wastewater treatment
  • Duplex Grade: High tensile strength (≥600MPa), perfect for high-pressure filtration systems
Supply Formats & Weave Options
  • Supply Formats: Cut-to-size sheets (max width 2.5m), continuous rolls (10-100m length), or pre-assembled filter discs
  • Weave Options: Plain weave (uniform aperture for general screening) / Mini Dutch weave (enhanced particle retention for fine filtration)
Core Selling Points
  • Dual Performance Balance: Achieves both fine particle screening (1.8mm cutoff) and high liquid/gas flow rate, reducing process downtime compared to finer mesh alternatives
  • Passivation Treatment: Forms a protective oxide layer that extends service life by 40% and eliminates the need for frequent replacement
  • Versatile Customization: Supports edge wrapping (PVC, aluminum), laser cutting, and welding into custom shapes without compromising mesh integrity
  • Compliance & Certification: Meets FDA, REACH, and RoHS standards, suitable for export to North America, Europe, and Australia markets
Target Applications
Fine grading of spices, coffee powder, and baking ingredients in food processing
Filtration of pharmaceutical intermediates, cosmetic serums, and electronic-grade chemicals
Protective mesh for precision instrument vents, drone components, and medical device guards
Water filtration in swimming pools, aquarium systems, and residential rainwater harvesting
Laboratory sieve analysis for soil, powder metallurgy, and nanomaterial research
