Stainless Steel Woven Wire Mesh with 12Mesh
उत्पाद विवरण
| सामग्री | स्टेनलेस स्टील | आकार | 1mx30m |
|---|---|---|---|
| जाल संख्या | 12जाल |
उत्पाद विवरण

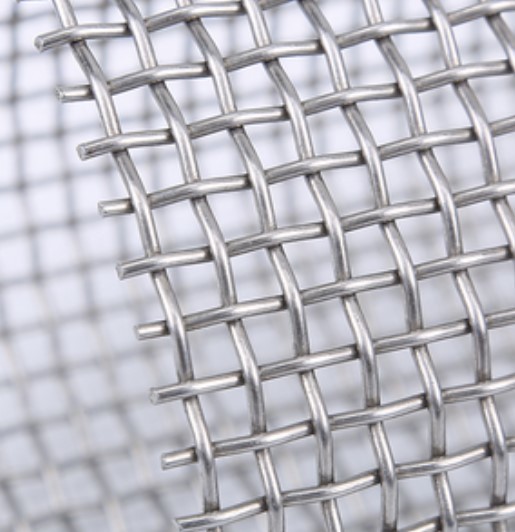

Stainless Steel Woven Wire Mesh with 12Mesh
Our 12 Mesh Stainless Steel Woven Wire Cloth is a high-quality filtration and separation mesh crafted from durable stainless steel wires. It features a precise plain square weave pattern, creating uniform square openings. This mesh offers an excellent balance of open area and strength, providing reliable performance for a wide range of industrial applications. The stainless steel construction ensures superior resistance to corrosion, rust, and heat, guaranteeing long service life even in demanding environments.
Primary Uses and Applications
- Filtration & Screening: Ideal for filtering solids from liquids and gases, sifting powders, and grading granules in the food, chemical, pharmaceutical, and mining industries.
- Separation & Sizing: Perfect for particle size separation, sorting, and classifying materials.
- Safety & Guarding: Used as protective screens, machine guards, and vent covers.
- Decorative & Architectural: Employed in architectural mesh, decorative panels, and design elements for its aesthetic appeal and functionality.
- Support & Reinforcement: Serves as a support mesh for catalysts, filter media, or in composite materials.
Specifications
| Mesh Count | 12 mesh per linear inch (both warp and weft) |
|---|---|
| Wire Diameter | Typically available in 0.028" (0.71mm) or as specified. (Note: Open area and precise opening size depend on the specific wire diameter used) |
| Opening Size | Approximately 0.084" (2.13mm) with a standard 0.028" wire |
| Weave Type | Plain Square Weave |
| Material | 304, 304L, 316, 316L Stainless Steel (or as requested) |
| Width & Length | Available in standard rolls or custom-cut sheets to meet specific requirements |
