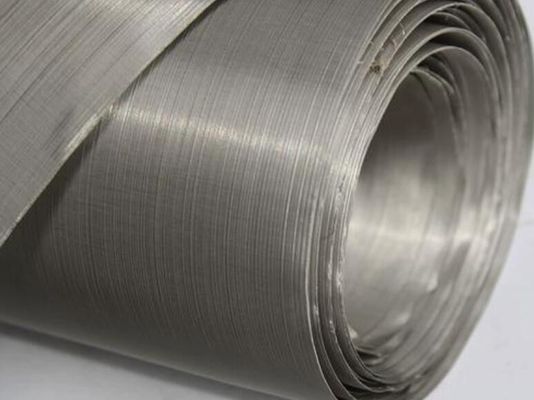

Stainless Steel Dutch Wire Mesh Designed for in Chemical Pharmaceutical and Food Industries Offering Filtration and Strength Properties

  • Stainless Steel Dutch Wire Mesh Designed for in Chemical Pharmaceutical and Food Industries Offering Filtration and Strength Properties
  • Stainless Steel Dutch Wire Mesh Designed for in Chemical Pharmaceutical and Food Industries Offering Filtration and Strength Properties
  • Stainless Steel Dutch Wire Mesh Designed for in Chemical Pharmaceutical and Food Industries Offering Filtration and Strength Properties
उत्पत्ति के प्लेस चीन की अनपिंग
ब्रांड नाम QIANPU
प्रमाणन ISO
न्यूनतम आदेश मात्रा 1 रोल
मूल्य Negotiable according to quantity of order
पैकेजिंग विवरण <i>1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wo
प्रसव के समय 20 दिन
भुगतान शर्तें टी/टी, एल/सी, वेस्टर्न यूनियन
आपूर्ति की क्षमता प्रति माह 3000 रोल
उत्पाद विवरण
प्रोडक्ट का नाम स्टेनलेस स्टील डच वायर मेष सामग्री स्टेनलेस स्टील 304 316
अधिकतम गणना 325 x 2300 चौड़ाई 0.1 से 2.0 मी
लंबाई 30 मी या अनुकूलित बुनाई पैटर्न सादा डच, टवील डच, रिवर्स डच
विशेषताएँ पहनने का विरोध, गर्मी का विरोध, एसिड का विरोध और जंग का विरोध।
प्रमुखता देना

Stainless Steel Dutch Wire Mesh for filtration

,

Chemical pharmaceutical food industry wire mesh

,

Stainless Steel Dutch Wire Mesh with strength
एक संदेश छोड़ें
उत्पाद विवरण

Introduction:

Twill Dutch weave wire mesh is a type of woven wire mesh that combines characteristics of twill weave and Dutch weave patterns. In this weave, the weft wires pass alternately over and under two warp wires, creating a diagonal pattern similar to twill weave. However, the warp wires are much thicker and spaced further apart than the weft wires, which is a characteristic of Dutch weave.

This combination results in a mesh with a tight filtration surface and excellent strength properties. Twill Dutch weave wire mesh is often used in applications that require fine filtration with high mechanical stability, such as in the chemical, pharmaceutical, and food processing industries.

Wire Materials:

SUS302, 304, 316, 304L, 316L.

Weaving Patterns:

Plain dutch, twill duth, reverse dutch, five heddle.

Packing:

stainless steel mesh made in small rolls,outside wooden cases.


Applications:



Stainless Steel Dutch Woven Wire Cloth and other materials are utilized as filter fittings for chemical industry, medicine, petroleum, telecommunication, scientific research units and so on.



Plain Dutch Weave Details sheet:

Mesh Warp×Weft Aperture Size Available Thickness
(mesh/inch) (mm) (um) Area(%) (mm)
Warp×Weft
20×150 0.45×0.355 101 7.5 1.16
20×200 0.355×0.28 118 12.1 0.915
20×250 0.25×0.15 120 17 0.71
20×270 0.25×0.20 119 17.6 0.65
24×300 0.28×0.18 110 19.6 0.64
30×270 0.28×0.20 77 11.2 0.68
30×300 0.25×0.18 38
30×340 0.28×0.16 89 17.9 0.6
30×360 0.25×0.15
40×430 0.18×0.125 63 15.4 0.43
40×540 0.18×0.10 70 23.5 0.38
50×500 0.14×0.11 47 12 0.364
50×600 0.125×0.09 51 17.2 0.305
65×600 0.14×0.09 36 12 0.32
70×600 0.14×0.09 31 10.1 0.32
78×680 0.112×0.08 29 10.3 0.272
78×760 0.112×0.071 31 13.5 0.254
80×680 0.112×0.08 28 9.8 0.272
80×700 0.11×0.08 - - -
90×760 0.10×0.071 24 9.6 0.242
90×780 0.11×0.07 - - -
90×850 0.10×0.063 26 12.7 0.226
100×760 0.10×0.071 20 7.4 0.242
100×850 0.10×0.063 22 10 0.226
130×1100 0.071×0.05 17 9.4 0.171
130×1200 0.071×0.045 18 12 0.161
130×1500 0.063×0.036 21 18.6 0.135
150×1400 0.063×0.04 15 11.4 0.143
160×1500 0.063×0.036 15 12.4 0.135
165×800 0.07×0.05 - - -
165×1400 0.063×0.04 13 8.8 -
165×1500 0.063×0.036 14 11.4 0.135
174×1400 0.063×0.04 11 7.4 0.143
174×1700 0.063×0.032 13 12.9 0.127
203×1500 0.056×0.036 9 6 -
203×1600 0.05×0.032 10 9.3 0.114
216×1800 0.045×0.03 - 9 0.105
250×1600 0.05×0.032 - 4 -
250×1900 0.04×0.028 8 8 -
285×2100 0.036×0.025 7 7.2 -
300×2100 0.036×0.025 6 6 -
317×2100 0.036×0.025 5 5 -
325×2300 0.036×0.024 4 4 -
Note: Absolute filter values above should be taken as just rough estimations.
